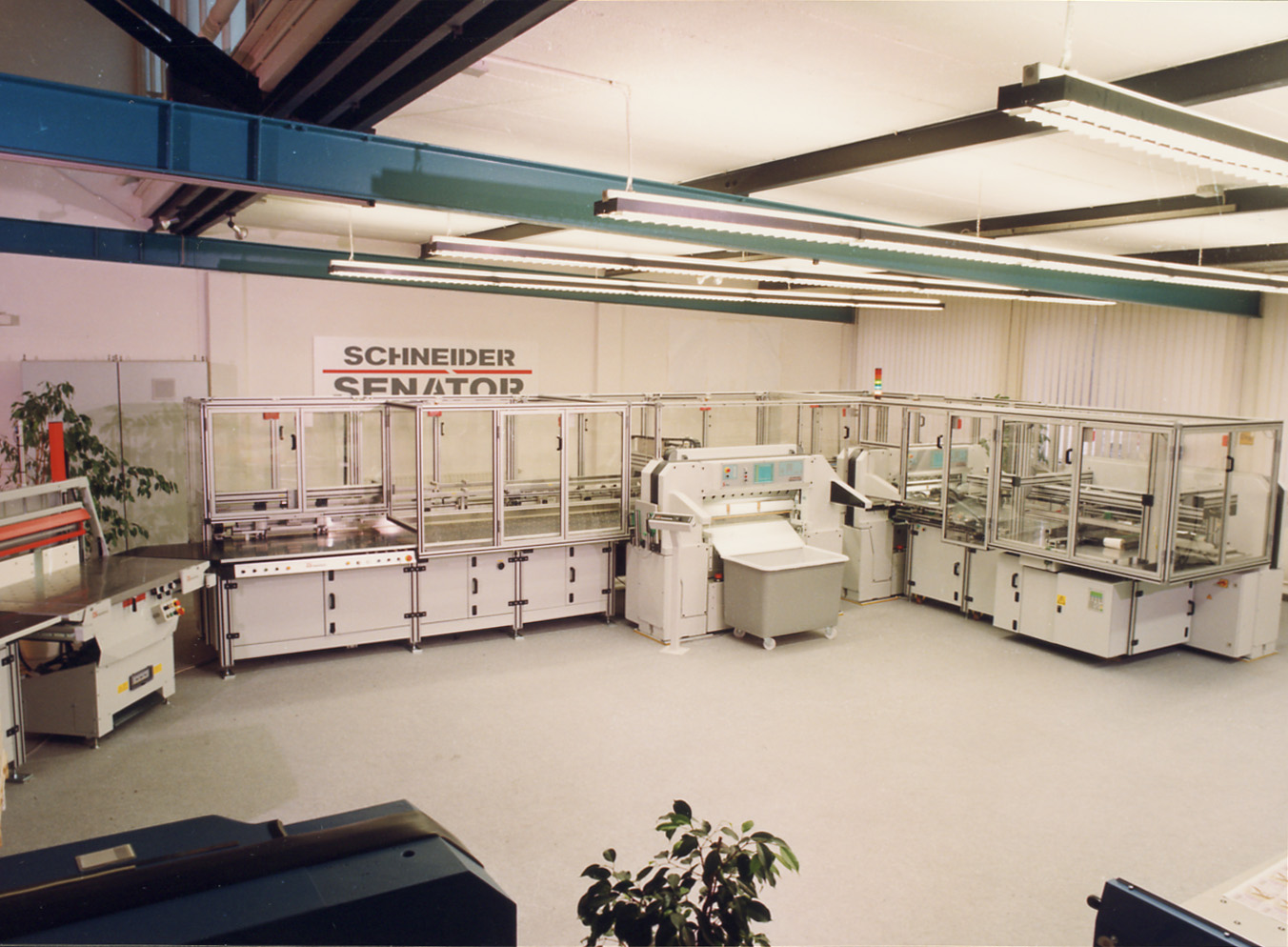

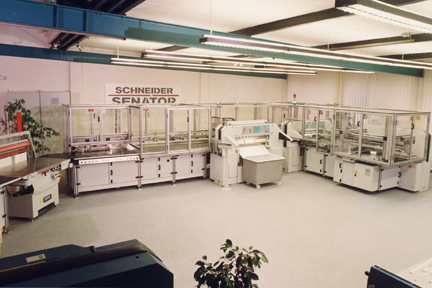

System TS-Sprint-cut
Back
The components.
Profi-Line jogger and counting table
Feeding device type AM 3
Senator S-Line 115H with turning device and automatic waste removal TrimmMaster
Transfer- and cache station towards second guillotine
Senator S-Line 115 H with special backgauge for strip cut
Alignment station and transfer table
Guillotine Senator S-Line 115 H for finishing cut
Transfer station for cutouts

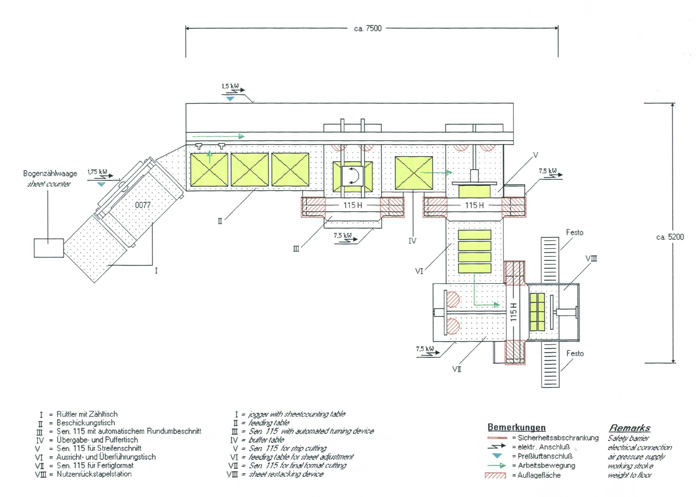

Dimensions
Label cut above the rest.
Developed for fully-automatic processing of banknotes, securities, labels and similar - from the sheet to finished single cutout - this high-quality system reduces the necessity of an operator to a minimum.
Customer requirement.
During the whole working process no manual intervention is needed. Therefore the plant is much faster than the conventional processing. So nearly 540.000 cutouts can be processed per hour. This makes the TS-Sprint-cut a very interesting system.
Technical Data
Minimum paper format,
mm 610 x 640
mm 610 x 640 Maximum paper format, mm 700 x 820
mm 700 x 820 Maximum ream height,mm 25
mm 25 Space requirements, mm 8.500 x 8.000
mm 8.500 x 8.000 Productivity 9.000 sheets / per hour
9.000 sheets / per hour 252,000 to 540,000 banknotes (depending on number of cutouts)
Subject to technical modifications. Errors excepted.
