E-Line 78 & 92

78 & 92

Small format cutting requires flawless precision and reliability: The new Senator E-Line cuts no corners. This highspeed guillotine for cutting widths of 30 inches (78 cm), and 36 inches (92 cm) provides all the quality advantages Schneider Senator is renowned for - at an unbeatable price.

The E-Line is fully equipped:

High-speed cutter Senator E-Line 78 and 92 with mechanical knife drive and hydraulic clamp

Computer-control with TFT-colour monitor

Frequency-controlled backgauge drive, ball race lead screw

Closed rear table

Solid cast iron frame

Infrared safety curtain

CE & EN 1010 - conform

Safety bolt

Airfilm table with stainless steel surface, rust-proof

Side tables, left- and righthand side, each with airfilm and stainless steel surface, rust-proof

Optical cut indicator

Knife change and knife adjustments at the front of the machine

2 knives

5 sinus cutting sticks

Clamp cover plate

Tools

Colour: RAL 7035, light grey

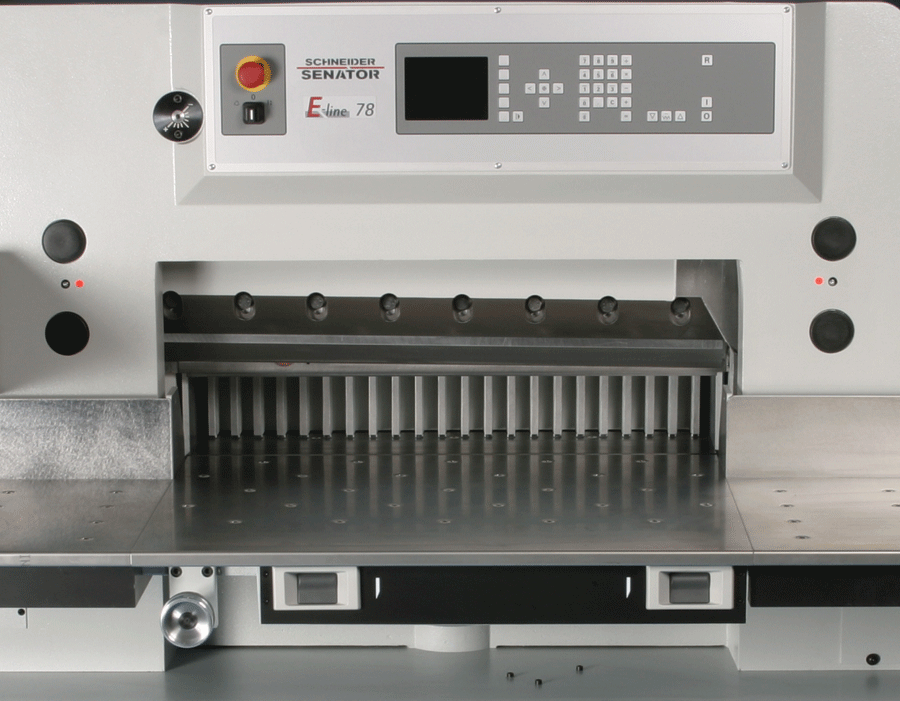

High-speed cutter Senator

E-Line 78 & 92

Small size, big performance.

Proven Technique

Logically Consistent Development.

During the development phase of the E-Line, we took great pains to ensure user-friendly operations. Knife changes, for example, can be performed easily and quickly without the operator having to leave his station. The knife draw rod never needs to be adjusted. All grease nipples are located at the outside of the machine.

Learning how to operate this problem free machine is exceptionally easy. After all, we know what you want: flexibility and reliablility, not headaches.

Overview

computer controls

C, CP & CT

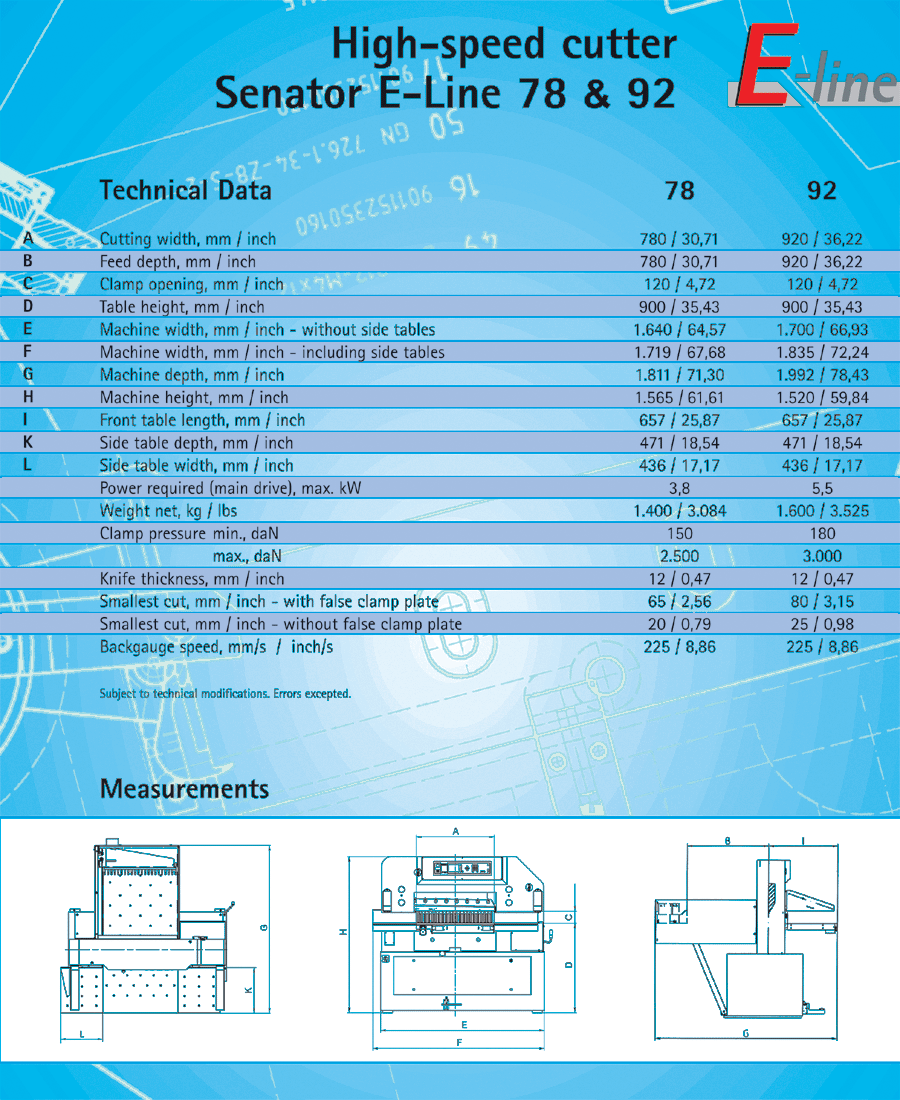

Dimensions
